Designed to lift up to 150lbs, this stainless steel vacuum tube lift handles all types of material loads – sacks, boxes, sheet wood, metal, panels and more…  It’s simple for an operator to adjust using the same handle to lift, lower and release the load. An added benefit, VLS manufactures all components on premises, meaning better customer service for you.

Watch a video of the VLS 150 and learn more about the features and benefits here….

• Call VLS Corporation today to get your electronic or hard copy of our informative marketing lit sheets.
• We can answer questions, provide quotes, discuss custom applications and much more…..

CALL. 610-831-1600 ext. 110;

EMAIL. kathy@vlscorporation.com or

SEND. RAPID QUOTE REQUEST

Available Now…

• Lift Tubes
• Top Swivels
• Suction Foots and much more

We can provide the best solution to get your vacuum system working in top condition.  Call with questions or for a quote today,  610-831-1600, ext. 110.

Want capabilities and benefits of our systems available for talking points?

Need to leave behind information providing several examples of VLS System’s lifting options?

Or need to determine if a VLS Vacuum Lift System is the right application for your facility?

Call VLS today @ 610-831-1600 ext. 110 and request your copy.

VLS 150:Custom solution for lifting lawn mower frame

A manufacturer of tire and tire treads experienced frustration over the lack of proper material handling equipment. Employees were asked to manually lift 60 lbs. carbon black bags and 110 lbs. of raw rubber blocks.  The company was experiencing a 50% reduction in production areas, scheduling problems and high employee turnover.

VLS Corporation Distributor’s Solution:

Our local Distributor conducted an assessment of the carbon black and raw rubber production lifting areas. VLS Corporation reviewed the findings and together worked with our Distributor to determine the best solution for the production areas.  VLS vacuum lift systems were installed with bridge cranes spanning the entire working areas. The properly installed cranes and VLS systems allowed the employees to easily lift the carbon black bags and raw rubber blocks.

Results/Impact:

• Increased production by 50%
• Production shut downs completely eliminated.
• VLS system design provided ergonomic safe work area.
• Reduction in employee turnover.
• Eliminated all scheduling problems in production area.

Click on below pictures for full view:

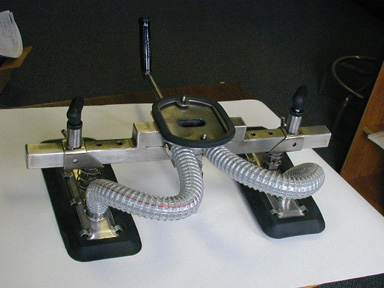

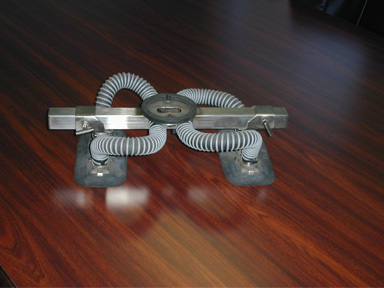

Custom Spreader Bar Foot

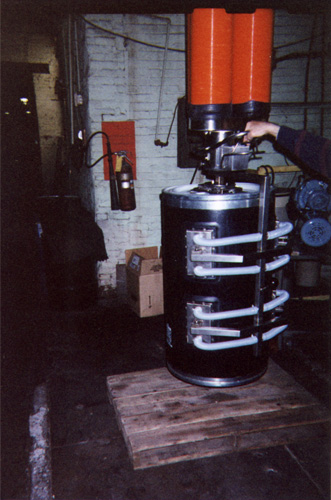

Triple Tube with 480lb Capacity Unit

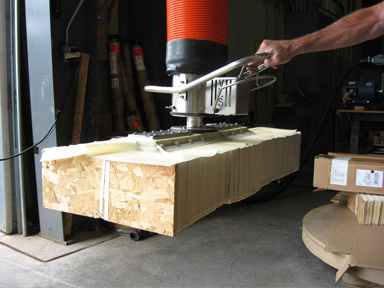

Signature Bundle Lift with 230lb Capacity Unit

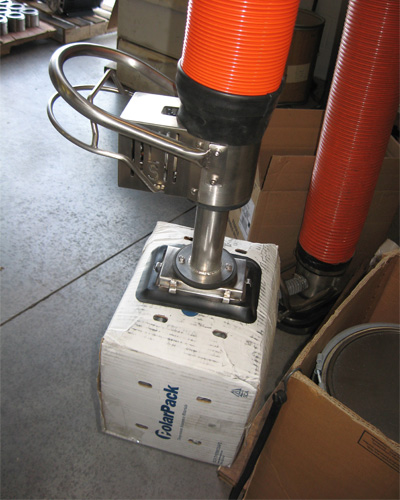

Box Lift Extended Reach with 100lb Capacity Unit

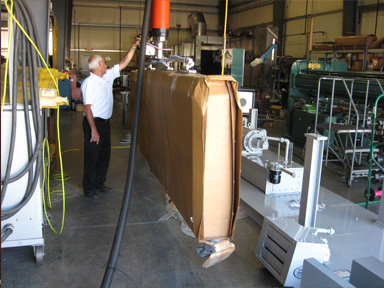

Box Lift with 350lb Capacity Unit

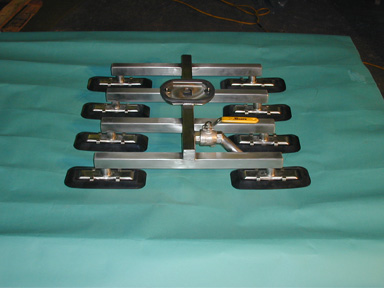

Custom Suction Foot, Spreader Bar with 8 pads

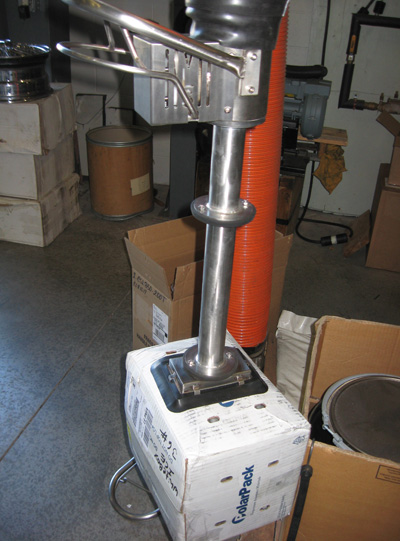

Box Lift Double Extension with 100lb Capacity Unit

• Adhesive Industry
• Appliance Industry
• Automobile Industry
• Business Forms
• Candy
• Chemical Industry
• Cleaning Compounds
• Computer Industry
• Food Industry
• Furniture Industry
• Meat Packing Industry
• Paint Industry
• Pharmaceutical Industry
• Printing Industry
• Tire Industry
• Television Industry

A manufacturer of furniture experienced very difficult and hazardous manual lifting conditions. The manufacturer’s employees were handling several dangerously different sizes of wood tabletops varying in weight from 75 lbs. to 200 lbs. Productivity was compromised by slow and treacherous movements. Equally the manufacturer risked an increase in worker’s compensation claims from its employees.

Distributor’s Solution:

Our local Distributor conducted an assessment of the current tabletop application and surveyed the manufacturer’s lifting area. VLS Corporation was asked to review the findings. Together VLS and its Distributor determined the need for an install of a test system. The VLS 230 lift system and a floor mounted jib crane were installed. For easier lifting a custom VLS adjustable foot with large suction feet was designed to lift all sizes and weights.

Results/Impact:

The VLS system’s ergonomic design provided increased safety conditions for the employees

• Overall safety improvement for employees due to the VLS system’s ergonomic design.
• Production increased with the elimination of slow and dangerous lifting.
• High customer satisfaction – 3 additional vacuum lifting systems were installed.

VLS’s vacuum lifting system is an ergonomic, safe and cost efficient means of transporting loads in a manufacturing process, while reducing the physical requirements of workers.

How It Works

This self-contained vacuum powered system lifts, maneuvers, and lowers a variety of non-porous and semi-porous loads by vacuum. Operators of the system may control the vacuum pressure by opening or closing the control valve, allowing one to lift, move and lower loads. The column of the vacuum in the lift tube allows for lifting without any stress to the operator. The ergonomic design allows the system to be suspended from a lightweight overhead crane, resulting in a greater range of motion for the operator.

Lifting Capacity + Custom Solutions

The VLS system is available in standard ranges from lifting 100lb to 480lb (45kg to 217kg) capacity. Custom systems and attachments are designed and manufactured to solve a company’s lifting challenges.

Click on below pictures for full view.

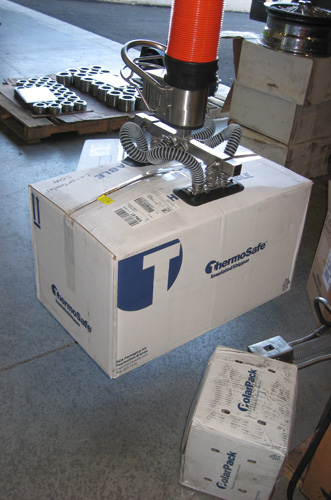

Box Lift with VLS 100

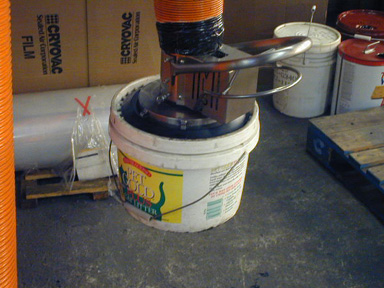

Plastic Pail Lift with VLS 100

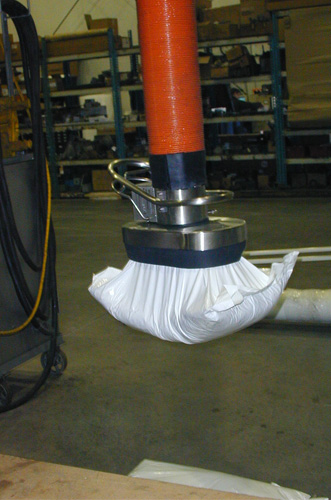

Sack Lift with VLS 150

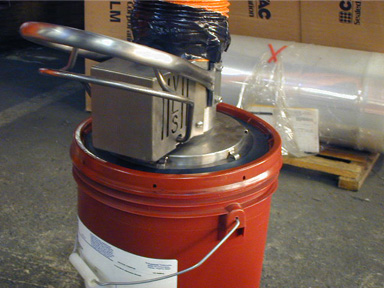

Pail Lift with VLS 100

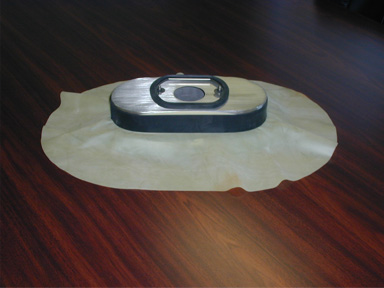

Standard Bag Foot

Standard Box Foot
